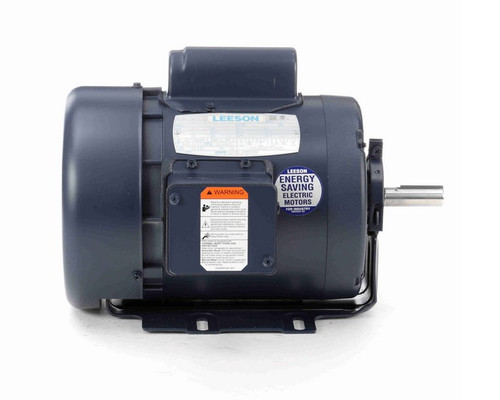

110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor
110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor

Leeson

110025.00 Leeson 1/2 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor

(No reviews) Write a Review
$565.80
$479.55
SKU 110025
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 8.8/4.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 8.8/4.4 amps 115/208-230 Volts 60hz. Single Phase Capacitor Start Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8" long
  • Service Factor: 1.15, Overload Protection = Auto
  • Resilient Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 110025.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 8.8/4.4 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
!
