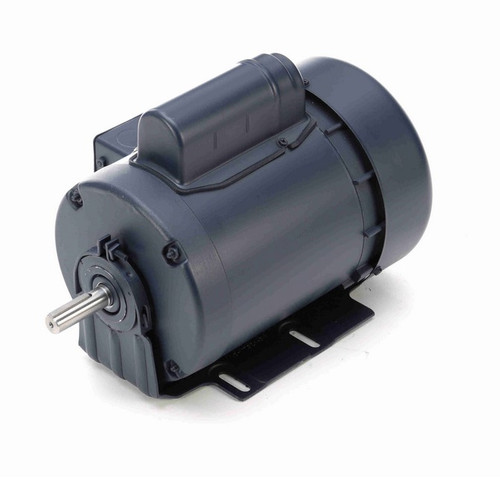

110026.00 Leeson 3/4 hp 1800 RPM 115/208-230V 56 Frame TEFC Resilient Base Motor

SKU:
110026
Weight:
31.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $631.80
Now: $546.00
  • 3/4 hp 1800 RPM, 10.8/5.4 amps 115/208-230 Volts 60hz. Single Phase Capacitor Start Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8" long
  • Service Factor: 1.15, Overload Protection = Auto
  • Resilient Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.

Replaces Marathon C806, 5KC49PN0281X
