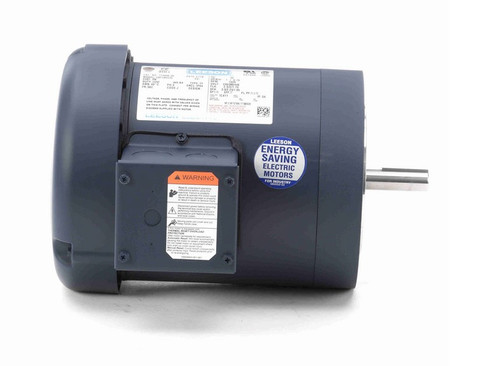

114896.00 Leeson 1 hp 1500 RPM 220/380//440V 56C Frame TEFC (No Base) 3-Phase 50 Hz Motor

114896.00 Leeson 1 hp 1500 RPM 220/380/440V 56C Frame TEFC (No Base) 3-Phase 50 Hz Motor

This Leeson 3-phase motor delivers 1 horsepower at 1500 RPM and is designed for industrial applications requiring reliable performance with inverter compatibility. It is suitable for replacing motors with similar voltage and frame specifications.

Key Specifications

• Horsepower: 1 hp
• RPM: 1500
• Voltage: 220/380/440 V
• Amperage: 3.5/2.0/1.8 A
• Enclosure: Totally-Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 5/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a keyed shaft and is designed without a base, allowing for flexible mounting options. It includes Class B insulation and is inverter rated, with the wiring diagram conveniently located on the motor nameplate for ease of installation. Overload protection is not included.

Warranty

1 Year Manufacturer Warranty
