sale
Leeson

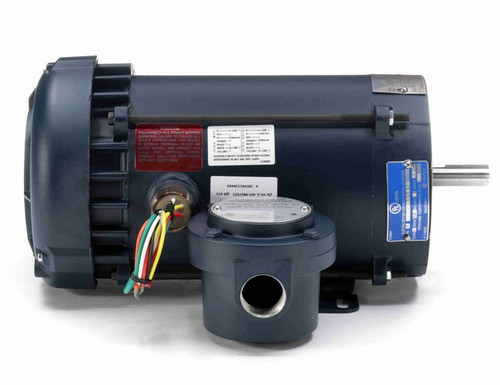

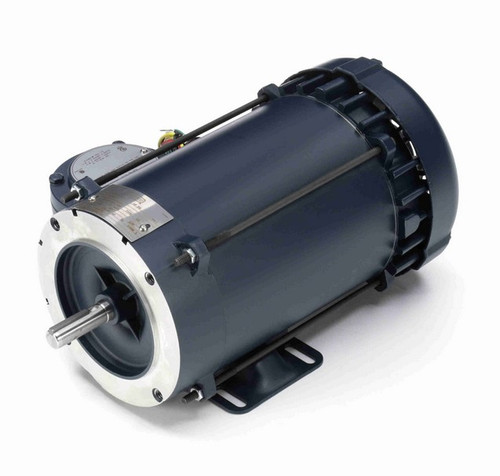

116612.00 Leeson 3/4 hp 1800 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor
(No reviews)
Write a Review
Write a Review
Leeson
116612.00 Leeson 3/4 hp 1800 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (Rigid Base) 1-Phase Motor
$1,105.15
$936.79
SKU
116612
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
3/4 HP
RPM
1800
Phase
Single Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
5.6 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
Mounting
C-Face
- 3/4 hp 1800 RPM, 11.0/5.4-5.6 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload Protection = Auto
- Rigid Base, Reversible, Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.116612.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 5.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
| Mounting | C-Face |
