- 1 1/2 hp 1800 RPM, 4.8/2.4 amps 230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload Protection = Thermostat
- No Base, Reversible, Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty

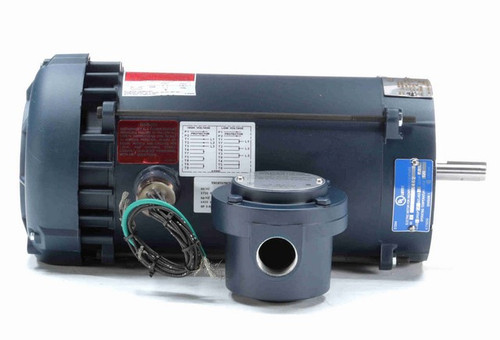

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119430.00
