- 1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
- Service Factor: 1.15, Overload Protection = Thermostat
- No Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty

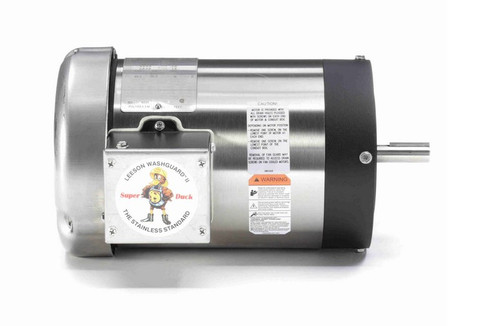

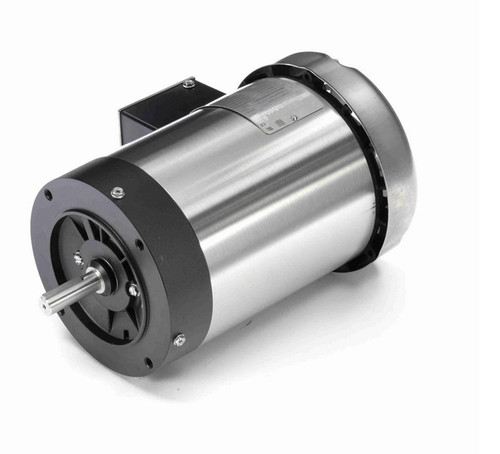

Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119487.00
