sale
Leeson

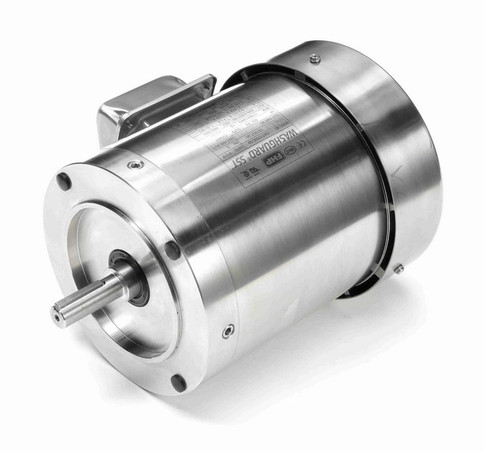

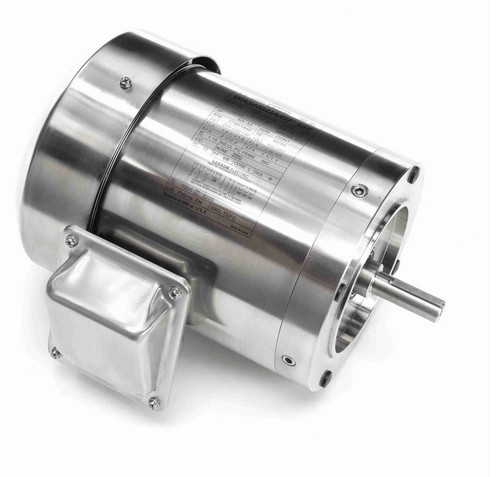

191507.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TEFC 3-Phase All-Stainless Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
191507.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TEFC 3-Phase All-Stainless Wash-Down Motor
$1,150.00
$1,034.94
SKU
191507
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TEFC
Hertz
60 Hz
Amperage
2.0/1.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
C-Face
- 1/2 hp 1800 RPM, 1.9-2.0/1.0 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
- Service Factor: 1.15, Overload Protection = None
- No Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 191507.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 2.0/1.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face |
Related Products
sale
Add to Cart
The item has been added

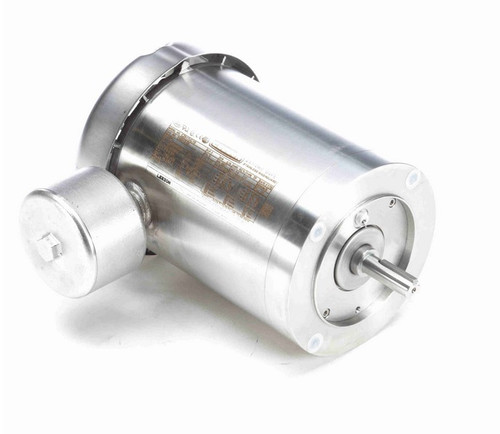

119512.00 Leeson 1 hp 1800 RPM 208-230/460V 56C Frame (No Base) TEFC 3-Phase Stainless Wash-Down Motor
1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
Service Factor: 1.15, Overload Protection = None
No Base, Reversible, Ball...
$1,774.45
$1,503.97
sale
Add to Cart
The item has been added

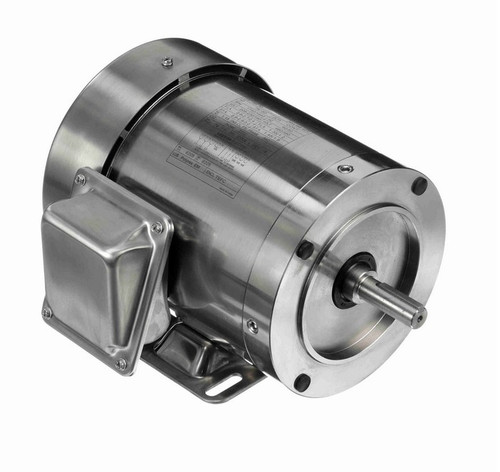

191950.00 Leeson 3/4 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor
3/4 hp 1800 RPM, 2.4-2.3/1.2 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
Service Factor: 1.15, Overload Protection = None
Rigid Base, Reversible,...
$1,380.00
$1,241.94
sale
Add to Cart
The item has been added
119497.00 Leeson 1 hp 1800 RPM 208-230/460V 56C Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
Service Factor: 1.15, Overload Protection = None
No Base, Reversible, Ball...
$1,400.00
$1,383.00
sale
Sold out

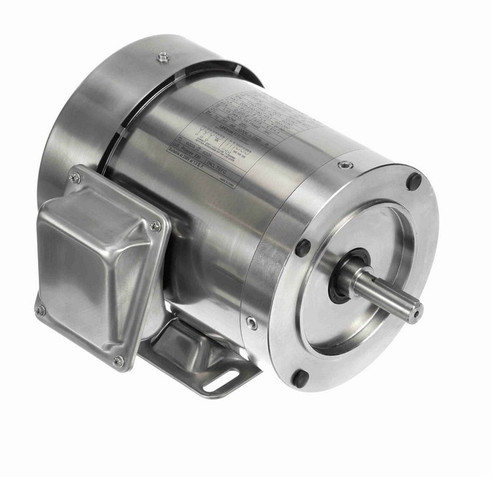

191949.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TEFC 3-Phase All-Stainless Wash-Down Motor
