- 1 1/2 hp 1800 RPM, 4.6-4.8/2.4 amps 208-230/460 Volts 60 Hz. Three Phase
- NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.15, Overload protection = None
- No Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty,

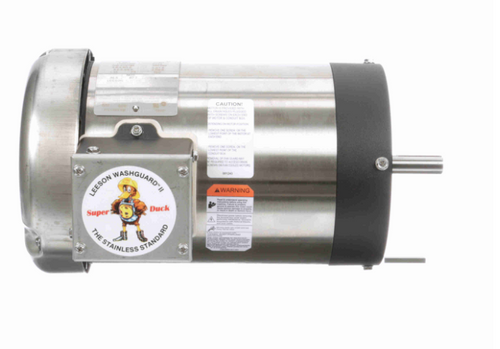

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119488.00
