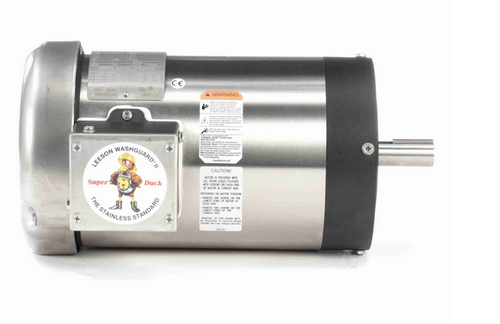

122200.00 Leeson Washguard 2 hp 1800 RPM 208-230/460V 3-Phase 145TC Frame TEFC (no base) Motor

• 2 hp 1800 RPM, 6.0-5.8/2.9 amps 208-230/460 Volts 60 Hz. Three Phase
• NEMA 145TC frame, C-face, Stainless Steel Keyed Shaft 7/8" Diameter x 2 1/8"
• Service Factor: 1.15, Overload protection = None
• No Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 122200.00
