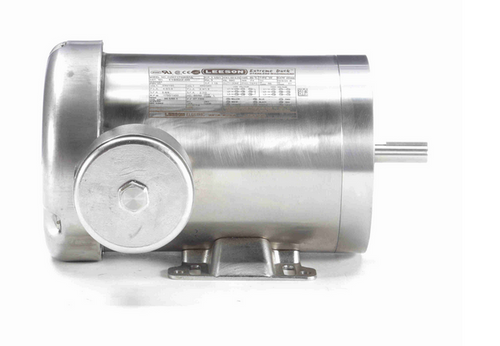

119522.00 Leeson Extreme Duck 1 1/2 hp 1800 RPM 230/460V 3-Phase 56C Frame TEFC (base) Motor

SKU:
119522.00
Weight:
59.00 LBS
Shipping:
Calculated at Checkout
$1,552.33
Adding to cart… The item has been added
  • 1 1/2 hp 1800 RPM, 4.8/2.4 amps 230/460 Volts 60 Hz. Three Phase
  • NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119522.00
