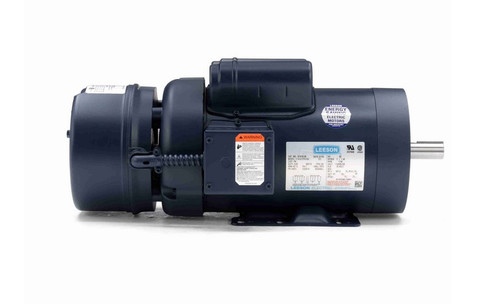

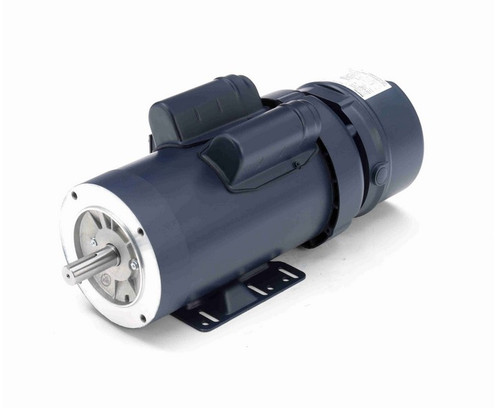

121816.00 Leeson 2 hp 1800 RPM 115/208-230V 145TC Frame (Rigid Base) TEFC 1-Phase Brake Motor

121816.00 Leeson 2 hp 1800 RPM 115/208-230V 145TC Frame (Rigid Base) TEFC 1-Phase Brake Motor

This Leeson 2 horsepower brake motor is designed for industrial applications requiring reliable stopping power and consistent performance. It replaces similar 1-phase brake motors and is ideal for machinery that demands precise motor braking and controlled operation.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 18.4/9.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This brake motor features a rigid base mount with a C-face brake that engages when power is off, providing reliable stopping capability. The bolt holes are spaced 3 3/4" on center across the shaft for straightforward installation. A wiring diagram is provided on the motor nameplate for easy electrical connection. The motor uses capacitor start/run technology suitable for single-phase power supplies.

Warranty

1 Year Manufacturer Warranty
