1270 Nidec 1/20 hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor
1270 Nidec 1/20 hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor
1270 Nidec 1/20 hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor
1270 Nidec 1/20 hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor

Nidec

1270 Nidec 1/20 hp 1075 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor

(No reviews) Write a Review
$285.20
$254.61
SKU 1270
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/20 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.86 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/20 hp 1075 RPM, 4 speed, 0.86 amps 115V Volts 60 Hz PSC Motor
  • 5.0" Dia. Frame, Rolled Steel, Flat Shaft 10" x 1/2" x 10"
  • Service Factor = 1, Overload Protection: Auto
  • Base Mount, Sleeve Bearings, Class B Insulation, CW Lead End
  • 1 Year Manufacture Warranty

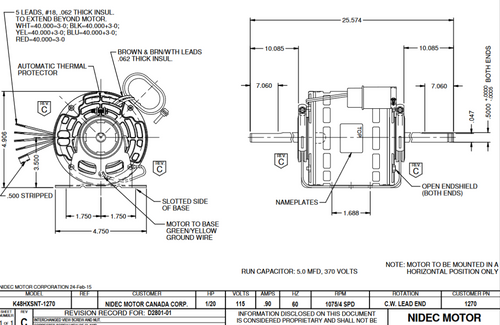

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. Open, K048SNT1270013B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115V
Horsepower 1/20 HP
RPM 1075
Hertz 60 Hz
Type PSC (Permanent Split Capacitor)
Amperage 0.86 Amps
Bearings Sleeve Bearings
Speeds 4-Speed
Insulation Class Class B
!
