Leeson
131533.00 Leeson | 3 hp 1725 RPM 184T Frame TEFC 115/208-230 Volts
(No reviews)
Write a Review
Write a Review
Leeson
131533.00 Leeson | 3 hp 1725 RPM 184T Frame TEFC 115/208-230 Volts
$1,353.55
$967.15
SKU
131533.00
UPC
6.92E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
Voltage
115/208/230V
Horsepower
3 HP
RPM
1725
Phase
Single Phase
Frame
184T
Enclosure
TEFC
Hertz
60 Hz
Amperage
33.6/16.8 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class F
Mounting
Rigid Base
131533.00 Leeson | 3 hp 1725 RPM 184T Frame TEFC 115/208-230 Volts

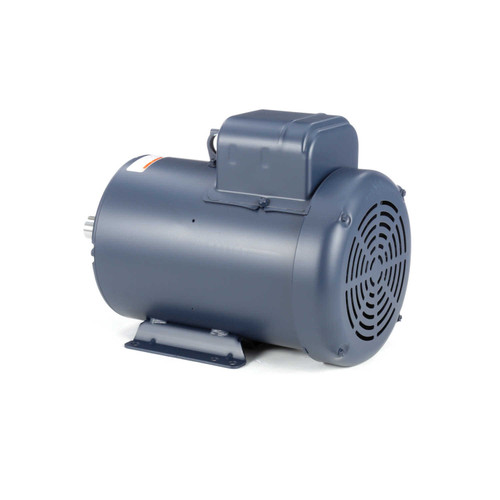

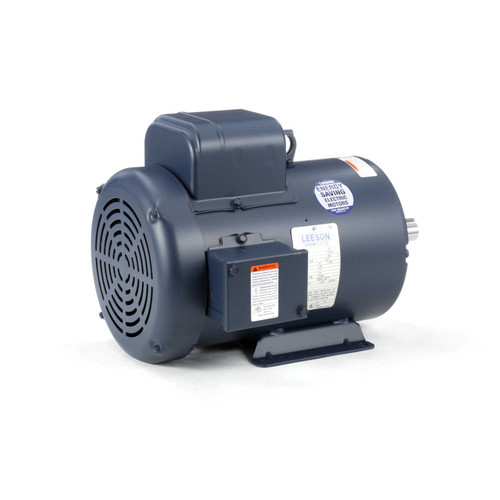

This Leeson 3 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It features a totally enclosed fan-cooled (TEFC) design and is suitable for replacing or upgrading motors with similar specifications.
Key Specifications
- Horsepower: 3 hp
- RPM: 1725
- Voltage: 115/208-230 Volts, 60 Hz
- Amperage: 33.6/16.8 Amps (115/208-230 V)
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 184T Frame

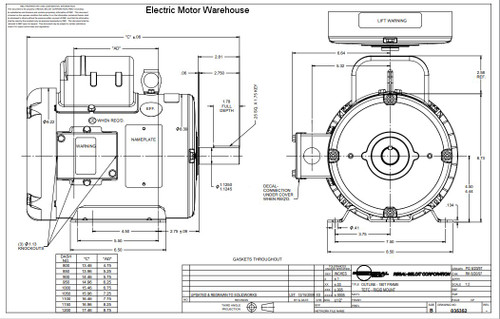

- Shaft Dimensions: Keyed Shaft, 1 1/8" Diameter x 2 3/4" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor includes a rigid base mount for secure installation and features a keyed shaft for reliable coupling. It is equipped with Class F insulation and a service factor of 1.0, though it does not include overload protection. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| Voltage | 115/208/230V |
| Horsepower | 3 HP |
| RPM | 1725 |
| Phase | Single Phase |
| Frame | 184T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 33.6/16.8 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
