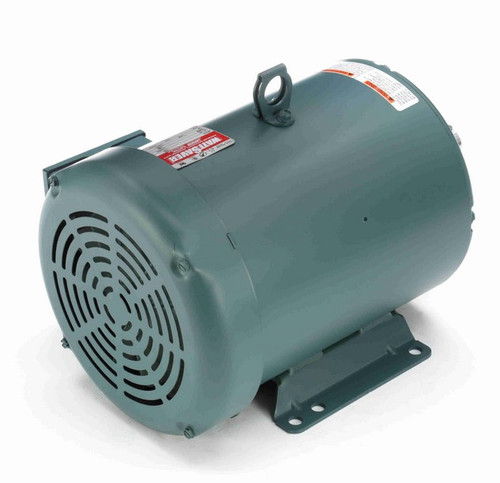

132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor
132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor
132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor
132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor
132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor
132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor

Leeson

132236.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame TEFC (with Base) 3-Phase Motor

(No reviews) Write a Review
$1,179.90
$819.95
SKU 132236
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 12.6/6.3 amps 230/460 Volts 60 Hz. Three Phase Motor
  • NEMA 184T Frame Flat Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a rigid base. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.132236.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEFC
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
