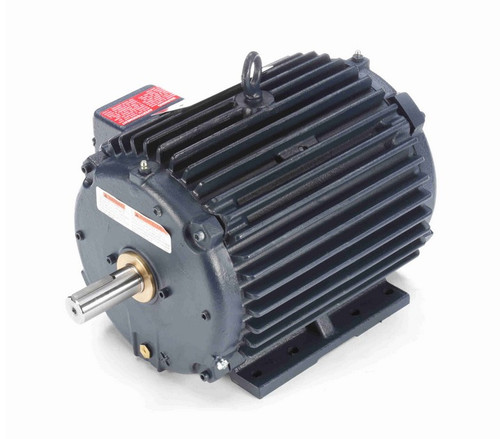

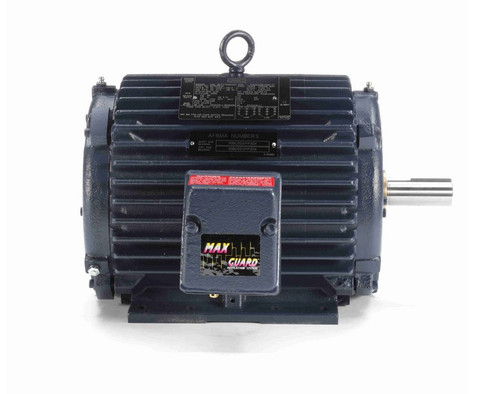

824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor
824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor
824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor
824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor
824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor
824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor

Leeson

824529.00 Leeson 5 hp 1800 RPM 230/460V 184T Frame (Rigid Base) TEAO 3-Phase Cast Iron Motor

(No reviews) Write a Review
$1,925.42
$1,605.52
SKU 824529.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEAO
Hertz 60 Hz
Amperage 12.4/6.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty severe duty
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 12.4/6.2 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 184T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Cast iron severe duty motor for use on cooling towers and any other fan application requiring long life and high efficiency. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air Over. 824529.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184T
Enclosure TEAO
Hertz 60 Hz
Amperage 12.4/6.2 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty severe duty
!
