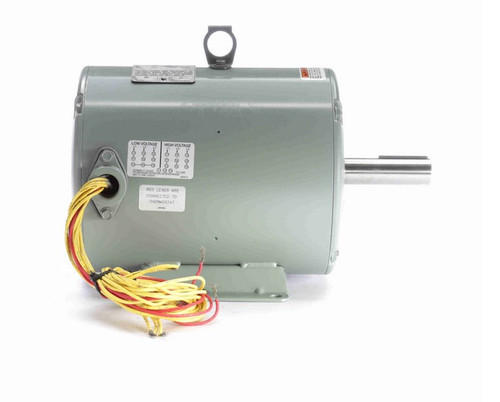

132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor
132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor
132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor
132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor
132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor
132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor

Leeson

132393.00 Leeson 5 hp 3600 RPM 208-230/460V 184TZ Frame (Rigid Base) TEAO 3-Phase Crop Dryer Motor

(No reviews) Write a Review
$984.85
$821.22
SKU 132393
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 208/230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184TZ
Enclosure TEAO
Hertz 60 Hz
Amperage 16.5/8.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 3600 RPM, 13.1-16.5/8.3 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 184TZ Frame Keyed Shaft 1 1/8" Diameter x 3 1/2"
  • Service Factor: 1.0, Overload Protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Centrifugal Fan motor designed for grain drying application. Wiring diagram on motor name plate. TEAO = Totally Enclosed Air-Over. 132393.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 208/230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Frame 184TZ
Enclosure TEAO
Hertz 60 Hz
Amperage 16.5/8.3 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
