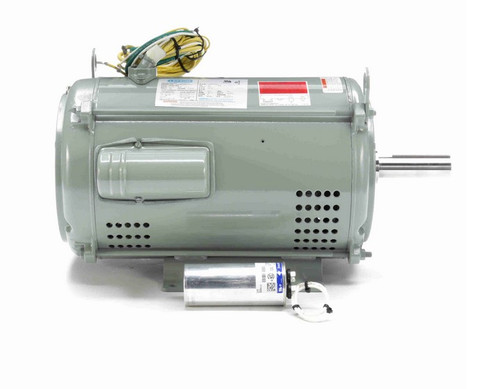

141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor
141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor
141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor
141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor
141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor
141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor

Leeson

141084.00 Leeson 10 hp 3600 RPM 230V 215TZ Frame (Rigid Base) DPAO 1-Phase Crop Dryer Motor

(No reviews) Write a Review
$1,328.80
$1,108.03
SKU 141084
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230V
Horsepower 10 HP
RPM 3600
Phase Single Phase
Frame 215TZ
Hertz 60 Hz
Amperage 40 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 10 hp 3600 RPM, 40 amps 230 Volts 60 Hz. Capacitor Start/Run 1-Phase Motor
  • NEMA 215TZ Frame Keyed Shaft 1 1/8" Diameter x 3 3/4"
  • Service Factor: 1.0, Overload Protection = Thermostat
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Fan motor designed for grain drying applications having motor in the air-stream. Wiring diagram on motor name plate. DPAO = Drip Proof Air Over. 141084.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230V
Horsepower 10 HP
RPM 3600
Phase Single Phase
Frame 215TZ
Hertz 60 Hz
Amperage 40 Amps
Bearings Ball Bearings
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
