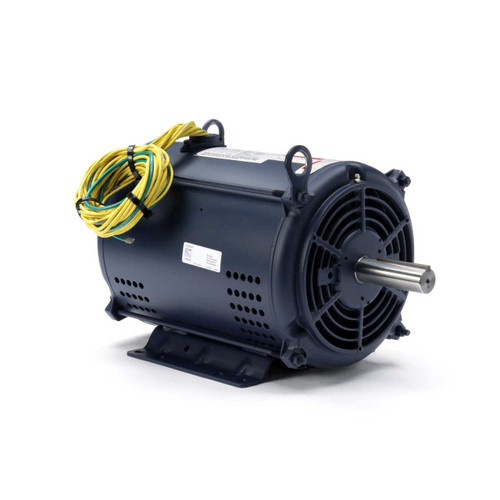

140640.00 Leeson | 10-15 hp 3450 RPM 215TZ 230V Crop Dryer Motor

140640.00 Leeson | 10-15 hp 3450 RPM 215TZ 230V Crop Dryer Motor

This Leeson crop dryer motor is designed for continuous duty operation in crop drying applications. It replaces standard motors with a specialized open air over, fan-on-shaft design optimized for airflow cooling and is not intended for belt or pump drive use.

Key Specifications

• Horsepower: 10-15 hp
• RPM: 3450
• Voltage: 230 V
• Amperage: 39.5-61.5 A
• Enclosure: Open air over, fan-on-shaft
• Frame / Diameter: 215TZ
• Shaft Dimensions: 4.5" length x 1-1/8" diameter with keyed shaft and 1/4-20 UNC tapped hole
• Bearings: Ball bearings

Product Features & Fitment

This motor requires installation in an airflow environment to prevent overheating and motor damage. It includes sealed bearings, rodent screens, and gray epoxy paint for durability. The motor comes with 34" leads exiting at the 12 o’clock position and capacitors supplied separately for single-phase models. An extra nameplate is provided for remote mounting. The motor venting is protected against insects and rodents to ensure reliable operation.

Warranty

• Dimensional Drawing
