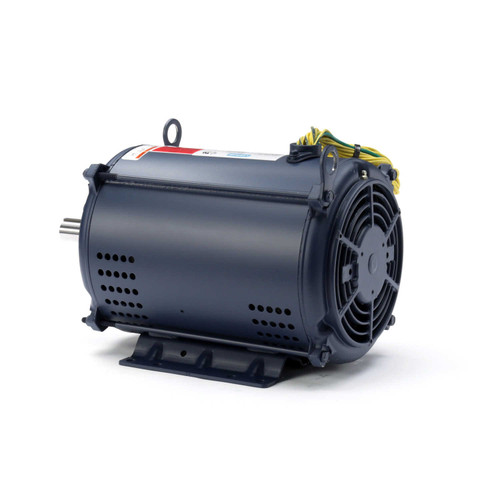

140641.00 Leeson | 10-15 hp 3450 RPM 215TZ 208-220/440V; 3-Phase Crop Dryer Motor

140641.00 Leeson | 10-15 hp 3450 RPM 215TZ 208-220/440V; 3-Phase Crop Dryer Motor

This Leeson 3-phase motor is designed specifically for crop drying applications, providing reliable continuous duty operation. It replaces motors requiring a 10-15 hp, 3450 RPM specification and is optimized for open air over, fan-on-shaft designs.

Key Specifications

• Horsepower: 10-15 hp
• RPM: 3450
• Voltage: 208-220/440V
• Amperage: 26.0/13.0 amps
• Frame / Diameter: 215TZ
• Shaft Dimensions: 4.5" length x 1-1/8" diameter, keyed with 1/4-20 UNC tapped hole
• Bearings: Ball Bearings

Product Features & Fitment

This motor must be installed in an airflow environment to prevent overheating and is not suitable for driving belts or pumps. It features a fan-on-shaft design with sealed bearings, rodent screens, and gray epoxy paint for durability. The motor includes 34" leads exiting at the 12 o'clock position and comes with an extra nameplate for remote mounting. Venting is protected against insects and rodents to ensure long-term reliability.

Warranty

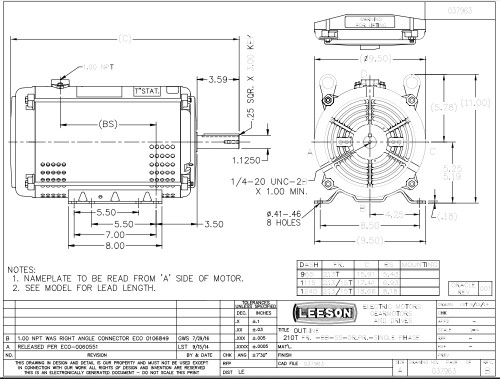

• Dimensional Drawing
