Auger Drive Motors

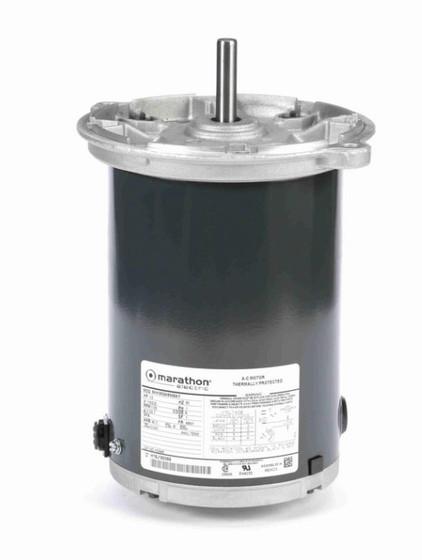

HG646 Marathon 1/3 hp 1800 RPM 115/230V TENV 48NY Frame Auger Motor The Marathon HG646 is a single-phase auger drive motor designed for reliable performance in industrial and agricultural applications. It serves as a direct replacement for similar 1/3...

1 hp 1800 RPM, 3.3-3.3/1.65 amps, 208-230/460 Volts 60 Hz. 3 Phase NEMA 56N Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.0, Overload Protection: Manual No Base, Reversible Rotation, Ball Bearings, Class...

3/4 hp 1800 RPM, 8.4/4.5-4.2 amps, 115/208-230 Volts 60/50 Hz. Capacitor Start/Capacitor Run NEMA 56YZ Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.25, Overload Protection: Manual No Base, Reversible...

1/3 hp 1800 RPM, 5.5/2.8 amps, 115/230 Volts 60 Hz. Capacitor Start/Induction Run NEMA 56N Frame, TENV, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.0, Overload Protection: Manual No Base, Reversible Rotation, Ball...

1/2 HP 1800 RPM (1 speed), 8.0/4.0 amps 115/230V Volts 50/60 Hz Capacitor Start Motor 56YZ Frame, Rolled Steel, Flat Shaft 1/2" diameter x 1 1/2" long Service Factor = 1.0, Overload Protection: Manual Face Mount, Ball Bearings, Class B Insulation,...

1/3 hp 1800 RPM, 1.2-1.2/0.6 amps, 208-230/460 Volts 60 Hz. 3 Phase NEMA 56N Frame, TENV, Shaft 5/8" Diameter x 1 5/8" Service Factor = 1.15, Overload Protection: Manual No Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year Manufacture...

1/2 hp 1800 RPM, 1.7-1.7/0.85 amps, 208-230/460 Volts 60 Hz. 3 Phase NEMA 56N Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.0, Overload Protection: Manual No Base, Reversible Rotation, Ball Bearings,...
