1843 Nidec 1/2 HP 1800 RPM ( 1 speed) 115/230V 56YZ Frame TEFC Auger Motor
1843 Nidec 1/2 HP 1800 RPM ( 1 speed) 115/230V 56YZ Frame TEFC Auger Motor
1843 Nidec 1/2 HP 1800 RPM ( 1 speed) 115/230V 56YZ Frame TEFC Auger Motor
1843 Nidec 1/2 HP 1800 RPM ( 1 speed) 115/230V 56YZ Frame TEFC Auger Motor

Nidec

1843 Nidec 1/2 HP 1800 RPM ( 1 speed) 115/230V 56YZ Frame TEFC Auger Motor

(No reviews) Write a Review
$303.60
$270.71
SKU 1843
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Frame 56YZ
Enclosure TEFC
Hertz 50/60 Hz
Amperage 8.0/4.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description
  • 1/2 HP 1800 RPM (1 speed), 8.0/4.0 amps 115/230V Volts 50/60 Hz Capacitor Start Motor
  • 56YZ Frame, Rolled Steel, Flat Shaft 1/2" diameter x 1 1/2" long
  • Service Factor = 1.0, Overload Protection: Manual
  • Face Mount, Ball Bearings, Class B Insulation, Reversible Rotation
  • 1 Year Manufacture Warranty

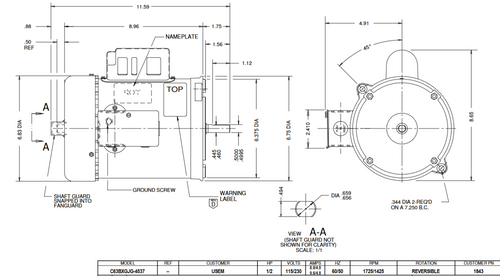

Auger Motor. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled, C063GJG4537025B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Frame 56YZ
Enclosure TEFC
Hertz 50/60 Hz
Amperage 8.0/4.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Rotation Reversible
!
