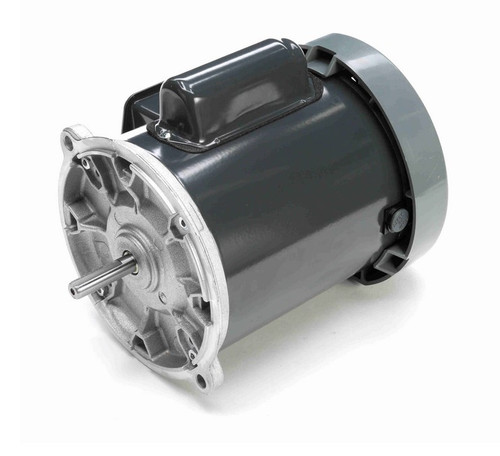

117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor
117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor
117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor
117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor
117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor
117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor

Leeson

117888.00 Leeson 1/2 hp 1800 RPM 115/230V 56YZ Frame TEFC 1-Phase Auger Drive Motor

(No reviews) Write a Review
$448.50
$380.08
SKU 117888
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56YZ
Enclosure TEFC
Hertz 60 Hz
Amperage 4.0 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 8.4/4.2-4.0 amps 115/208-230 Volts 60 Hz. Cap Start 1-Phase Motor
  • NEMA 56YZ Frame with Keyed Shaft 1/2" Diameter x 1 7/8"
  • Service Factor: 1.25, Overload Protection = Manual
  • No Base, Reversible, Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

Replacement motor for poultry feed auger drive systems. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 117888.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56YZ
Enclosure TEFC
Hertz 60 Hz
Amperage 4.0 Amps
Bearings Ball Bearings
Service Factor 1.25
Insulation Class Class B
!
