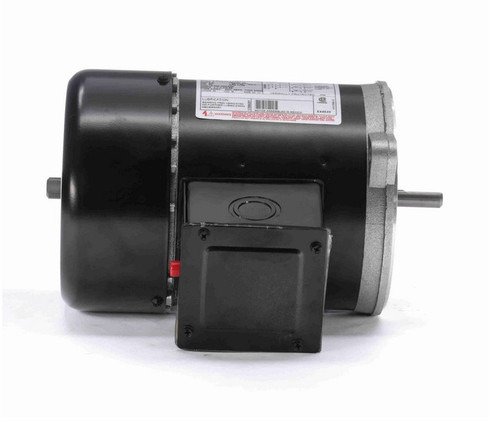

C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor
C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor

Century Electric Motor

C346 Century 3-Phase 1/2 hp 1800 RPM 208-230/460V TEFC 56N Frame Auger Motor

(No reviews) Write a Review
$362.02
$306.82
SKU C346
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56N
Enclosure TEFC
Hertz 60 Hz
Amperage 1.7/0.85 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description
  • 1/2 hp 1800 RPM, 1.7-1.7/0.85 amps, 208-230/460 Volts 60 Hz. 3 Phase
  • NEMA 56N Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat
  • Service Factor = 1.0, Overload Protection: Manual
  • No Base, Reversible Rotation, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Century three phase Auger Drive motor, TEFC = Totally-Enclosed Fan-Cooled, C346

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Frame 56N
Enclosure TEFC
Hertz 60 Hz
Amperage 1.7/0.85 Amps
Bearings Ball Bearings
Insulation Class Class B
Rotation Reversible
!
