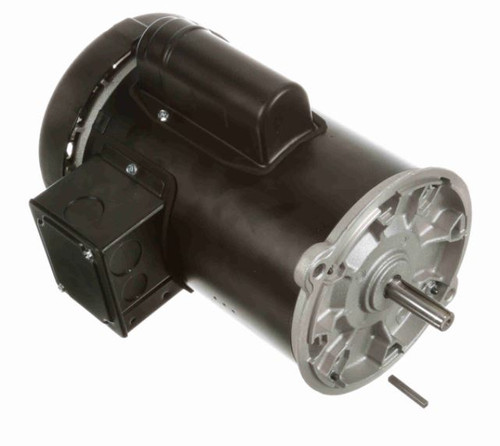

C333V1 Century 1 hp 1800 RPM 56N Frame TEFC 115/230V Auger Drive Motor

C333V1 Century 1 hp 1800 RPM 56N Frame TEFC 115/230V Auger Drive Motor

The Century C333V1 is a 1 horsepower, 1800 RPM auger drive motor designed for direct drive poultry and swine feeding systems. It replaces Century/AO Smith C333 and is also referenced as Dayton 48Y642 and 7-186458-02.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/230V, 60 Hz
• Amperage: 11.6/5.8 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 56N Frame
• Shaft Dimensions: 5/8" Diameter Keyed Shaft x 2"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a new "N" bracket, torque switch, and governor for enhanced control. It includes double sealed ball bearings and high starting torque with Class B insulation. Manual overload protection is provided for added safety during operation.

Cross Reference

• Cenutry/AO Smith C333

Warranty

1 Year Manufacturer Warranty
