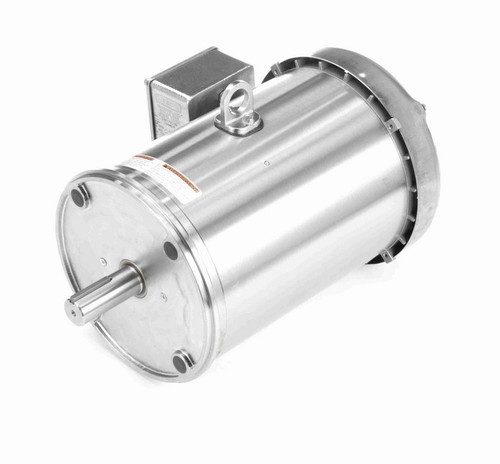

132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor
132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor

Leeson

132448.00 Leeson 5 hp 1800 RPM 230/460V 184TC Frame (No Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor

(No reviews) Write a Review
$2,879.60
$2,260.44
SKU 132448
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description
  • 5 hp 1800 RPM, 12.6/6.3 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload Protection = None
  • No Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132448.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 5 HP
RPM 1800
Phase Three Phase
Frame 184TC
Enclosure TEFC
Hertz 60 Hz
Amperage 12.6/6.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting C-Face
!
