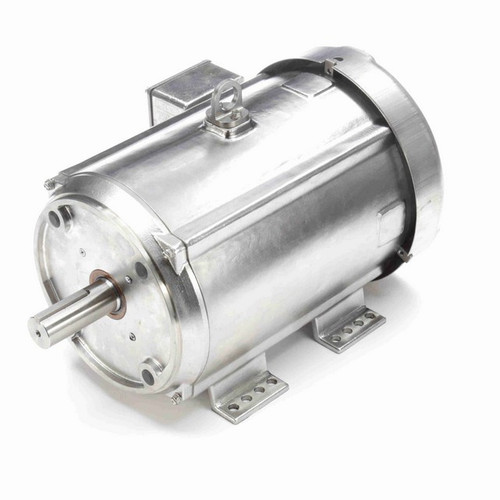

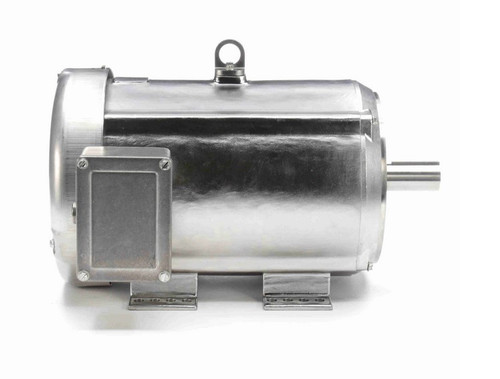

140826.00 Leeson 7 1/2 hp 1800 RPM 230/460V 213TC Frame (Rigid Base) TEFC 3-Phase Premium-Stainless Wash-Down Motor

SKU:
140826.00
Weight:
173.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $4,215.60
Now: $3,643.00
  • 7 1/2 hp 1800 RPM, 21.6/10.8 amps 230/460 Volts 60 Hz. 3-Phase Motor
  • NEMA 213TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8
  • Service Factor: 1.15, Overload Protection = None
  • Rigid Base, Reversible, Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

Premium Stainless Steel Wash Duty motor with a C-face mount for use in wet environments requiring the addition of strong corrosive disinfectants . Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 140826.00
