GT0060 Marathon 15 hp 1200 RPM 284T Frame 230/460V Open Drip Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
GT0060 Marathon 15 hp 1200 RPM 284T Frame 230/460V Open Drip Marathon Electric Motor
$2,430.41
$2,081.50
SKU
MGT0060
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
15 HP
RPM
1200
Phase
Three Phase
Frame
284T
Enclosure
ODP
Hertz
60 Hz
Amperage
41.0/20.6 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 15 hp 1200 RPM, 41.0/20.6 amps 230/460 Volts 60hz. Three Phase Motor

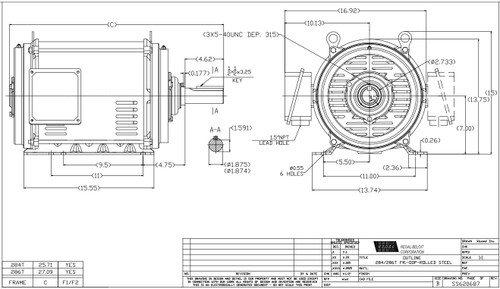

- NEMA 284T Frame Keyed Shaft 1 7/8 " Diameter x 4 5/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.
284TTDBD6076 Replaces Leeson 170067.60, B199700.00, 199700.00; Dayton 454X53
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230/460V |
| Horsepower | 15 HP |
| RPM | 1200 |
| Phase | Three Phase |
| Frame | 284T |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 41.0/20.6 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
