D15P2G Nidec | 15 hp 1800 RPM 254T Frame 575V ODP Electric Motor Nidec
D15P2G Nidec | 15 hp 1800 RPM 254T Frame 575V ODP Electric Motor Nidec
D15P2G Nidec | 15 hp 1800 RPM 254T Frame 575V ODP Electric Motor Nidec
D15P2G Nidec | 15 hp 1800 RPM 254T Frame 575V ODP Electric Motor Nidec

Nidec

D15P2G Nidec | 15 hp 1800 RPM 254T Frame 575V ODP Electric Motor Nidec

(No reviews) Write a Review
$1,291.45
$1,153.22
SKU D15P2G
UPC 6.63E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 15 HP
RPM 1800
Phase Three Phase
Frame 254T
Enclosure ODP
Amperage 14.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 15 hp 1800 RPM, 14.8 amps 575V Three Phase

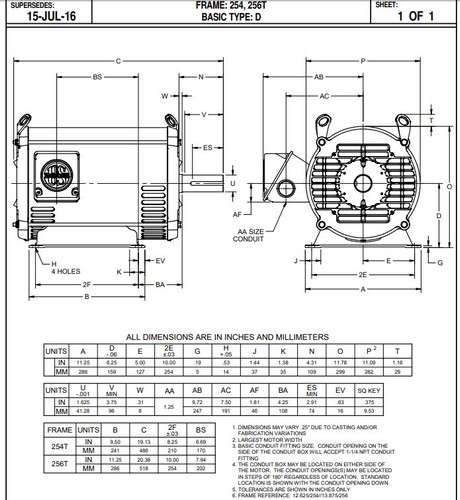

  • NEMA 254T Frame Keyed Shaft 1-5/8" Diameter x 4"
  • ODP; Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • "C" Dimension 19.1"
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty.  Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof

Model FB87, Dayton 6YP96

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 15 HP
RPM 1800
Phase Three Phase
Frame 254T
Enclosure ODP
Amperage 14.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
