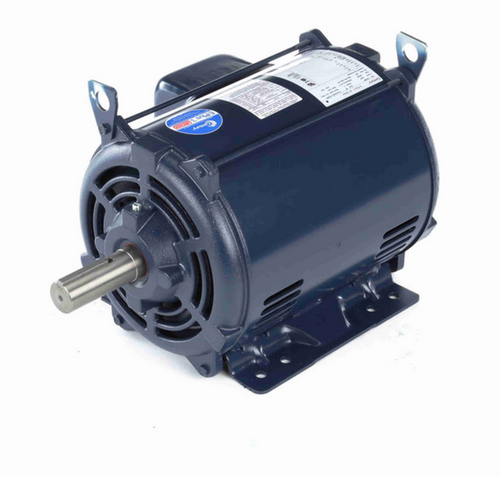

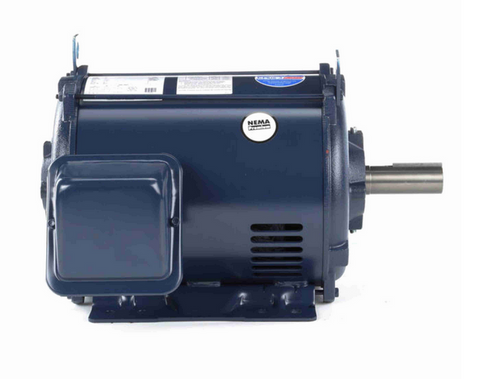

E450M2 Century 15 hp 1800 RPM 3-Phase 254T Frame ODP (rigid base) 200V Century Motor # E450M2

E450M2 Century 15 hp 1800 RPM 3-Phase 254T Frame ODP (rigid base) 200V Century Motor # E450M2

This Century E450M2 motor is a general-purpose, three-phase industrial motor designed for applications requiring reliable 15 hp power at 1800 RPM. It is ideal for replacing or upgrading equipment with a NEMA 254T frame and rigid base mounting.

Key Specifications

• Horsepower: 15 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 43.4 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 254T
• Shaft Dimensions: 1 5/8" Diameter x 4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for secure mounting and includes a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class F insulation and designed for general-purpose use where no special requirements are needed. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
