D15P1D Nidec | 15 hp 3600 RPM 215T Frame 208-230/460V ODP Electric Motor Nidec

D15P1D Nidec 15 hp 3600 RPM 215T Frame 208-230/460V ODP Electric Motor

This general-purpose three-phase electric motor from Nidec delivers reliable 15 hp power at 3600 RPM. It is designed for continuous duty applications and can replace similar 215T frame motors requiring premium efficiency and robust performance.

Key Specifications

• Horsepower: 15 hp
• RPM: 3600
• Voltage: 208-230/460V
• Amperage: 36.0/18.0 amps
• Enclosure: Open Drip Proof (ODP)

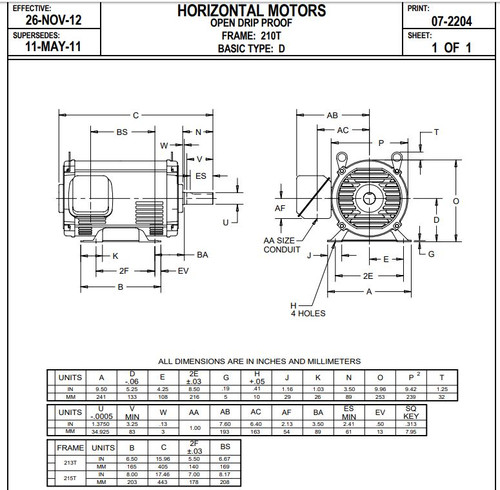

• Frame / Diameter: NEMA 215T, "C" Dimension 17.5"
• Shaft Dimensions: Keyed shaft, 1-3/8" diameter x 3-3/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and is rated for continuous duty at ambient temperatures up to 40°C. It includes Class F insulation for enhanced thermal protection. Wiring diagrams are provided on the motor nameplate for ease of connection. Note that this model does not include overload protection.

Warranty

1 Year Manufacturer Warranty
