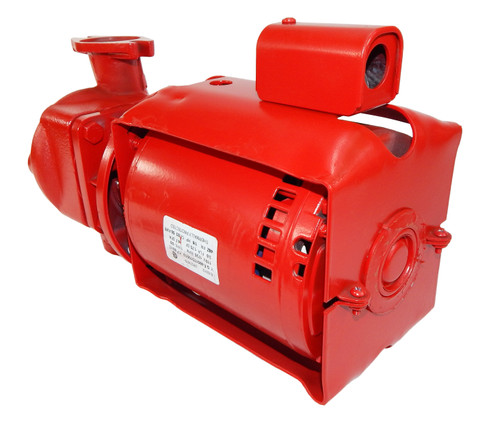

174034MF-013 ARMSTRONG • 1/6 hp 115V Circulator Pump • Model H-32

174034MF-013 ARMSTRONG • 1/6 hp 115V Circulator Pump • Model H-32

The Armstrong Model H-32 is a 1/6 HP in-line circulator pump designed for hydronic heating and cooling, domestic water systems, multi-stage zoning, and general industrial service. It serves as a direct replacement for Bell & Gossett Series 100 Model 102210 HV NFI, Armstrong previous model 174034-013, and Grainger 4RC93.

Key Specifications

• Horsepower: 1/6 HP
• RPM: 1725
• Voltage: 115V 60Hz
• Bearings: Permanently lubricated ball bearings

Product Features & Fitment

This pump features a maintenance-free design with permanently lubricated ball bearings, eliminating the need for oiling and providing superior performance compared to pumps requiring regular maintenance. The impeller is made of non-ferrous material and the shaft is stainless steel, housed within a cast iron, standard three-piece design.

The pump includes a hardware kit with mounting bolts and two rubber flange gaskets; however, the threaded flange is sold separately. All circulators must be mounted with the motor and pump in a horizontal position. Note that this pump is not designed for potable water systems and is not compliant with the Safe Drinking Water Act. The flange configuration allows for quick pump replacement without pipe modifications.

Cross Reference

• the following models
• Bell & Gossett Series 100, Model 102210 HV NFI
• Armstrong Previous Models 174034-013
• Grainger 4RC93
• Replacement Parts
• 816549MF-091 • Bearing Assembly
• 816322-111K • 3-3/8" Impeller
• 806026-001 • Spring Coupler

Warranty

1 Year Manufacturer Warranty
