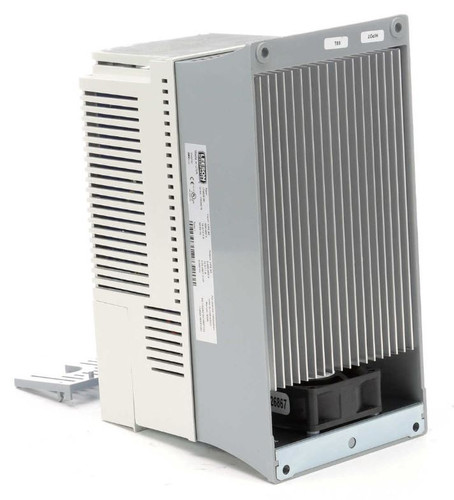

174627.00 Leeson SM2 AC Adjustable Speed VFD Drive 10HP 400-480V

174627.00 Leeson SM2 AC Adjustable Speed VFD Drive 10HP 400-480V

The Leeson SM2 Series Flux Vector AC Inverter is a 10 HP variable frequency drive designed for three-phase AC motors rated for vector duty. It replaces the Leeson 174552.00 VFD drive and is ideal for applications in food processing, machinery, material handling, and HVAC systems.

Key Specifications

• Horsepower: 10 HP
• Voltage: 400-480V
• Amperage: 14.0 A (maximum)
• Enclosure: NEMA 1, IP31
• Rotation: Three Phase Input/Output Only

Product Features & Fitment

This drive operates in multiple modes including open loop flux vector (speed or torque), V/Hz (constant or variable), and enhanced V/Hz with auto-tuning for optimized motor control. It features an easy-to-use keypad with a 6-button interface and a bright 4-digit LED display with a movable decimal point for clear visibility from a distance.

The unit is rated for indoor use with a NEMA 1 enclosure that protects against light dust and prevents accidental contact with electrical components. It operates within a temperature range of -10°C to 55°C, with a 2.5% current derate per degree above 40°C. The compact design weighs 7 lbs and measures 9.83 x 5.12 x 6.3 inches, facilitating straightforward installation in typical industrial environments.

Cross Reference

• Leeson 174552.00 VFD Drive
