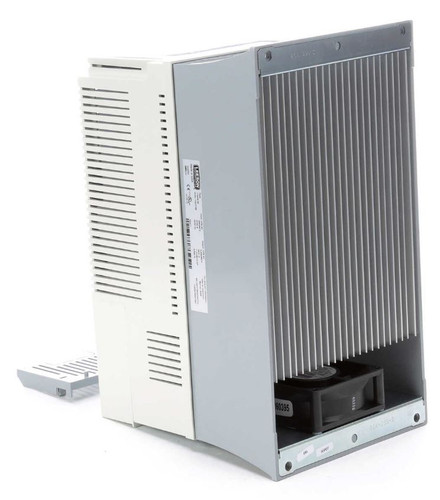

174711.00 Leeson SM2 AC Adjustable Speed VFD Drive 60HP 400-480V

SKU:
174711
Weight:
35.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $4,299.20
Now: $4,002.56

SM2 Series Flux Vector Series AC Inverter

  • 60hp, 400-480V; Max amps 87.0
  • Three Phase Input/Output Only
  • Designed to be used with vector duty rated AC motors
  • Typical applications would include: food processing, machinery, material handling and HVAC systems
  • Enclosure: NEMA1, IP31, -10 to 55C degrees, 2.5% derate per degree above 40C
  • NEMA 1 = General purpose enclosures for indoor use. Protects against light dust, is not dust-tight. Primarily prevents accidental contact with the electrical components.

Modes of Operation:
Open loop flux vector (speed or torque)
V/Hz (constant or variable)
Enhanced V/Hz with auto-tuning

Easy to Use Keypad & Display
6 Button Interface: Start, Stop, Forward/Reverse, Scroll Up/Down, Enter/Mode

Vivid Illumination
4 digit LED Display
Easy to read from a distance
Movable decimal point

Weight: 35-lbs
Dimensions: 20.19 x 8.72 x 10.07 (inches)

Replaces Leeson 174572.00 VFD Drive

Specifications are subject to change without notice
