sale
Nidec
1822H Nidec 2 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
(No reviews)
Write a Review
Write a Review
Nidec
1822H Nidec 2 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
$695.75
$620.89
SKU
1822H
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
208/230/460V
Horsepower
2 HP
RPM
1140
Phase
Three Phase
Frame
56Z
Hertz
60 Hz
Amperage
7.4/3.7 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
Mounting
Rigid Base
1822H Nidec 2 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
This Nidec commercial condenser fan motor is designed for higher than normal temperature environments. It is a reliable replacement motor suitable for various HVAC and industrial applications requiring a 2 hp, 3-phase motor with a rigid base mount.
Key Specifications
- Horsepower: 2 hp
- RPM: 1140
- Voltage: 208-230/460V
- Amperage: 7.6-7.4/3.7 amps
- Enclosure: Open Air-Over (OAO)
- Frame / Diameter: NEMA 56Z Frame, Rolled Steel
- Shaft Dimensions: 5/8" Diameter x 4 7/8" Length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base mount for secure installation and includes a wiring diagram on the motor nameplate for ease of setup. It is constructed with Class B insulation and provides automatic overload protection to ensure durability and safety in demanding commercial environments.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 208/230/460V |
| Horsepower | 2 HP |
| RPM | 1140 |
| Phase | Three Phase |
| Frame | 56Z |
| Hertz | 60 Hz |
| Amperage | 7.4/3.7 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added
1820H Nidec 1 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
1820H Nidec 1 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
This Nidec commercial motor is a 1 horsepower, 3-phase unit designed for condenser fan applications...
$570.40
$509.11
sale
Add to Cart
The item has been added
1826H Nidec 3/4 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
1826H Nidec 3/4 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
This Nidec commercial motor is a 3/4 horsepower, 3-phase unit designed for condenser fan...
$564.65
$504.16
sale
Add to Cart
The item has been added
1821H Nidec 1 1/2 hp 1140 RPM 208-230/460V 56Z Frame (Rigid Base) 1-Speed OAO 3-Phase Commercial Motor
1 1/2 hp 1140 RPM, 5.4/2.7 amps 208-230/460V Volts 60 Hz 3-Phase Motor
NEMA 56Z Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 4 7/8" long
Service Factor = 1.0, Overload Protection: Auto
Rigid Base...
$625.60
$558.79
sale
Add to Cart
The item has been added

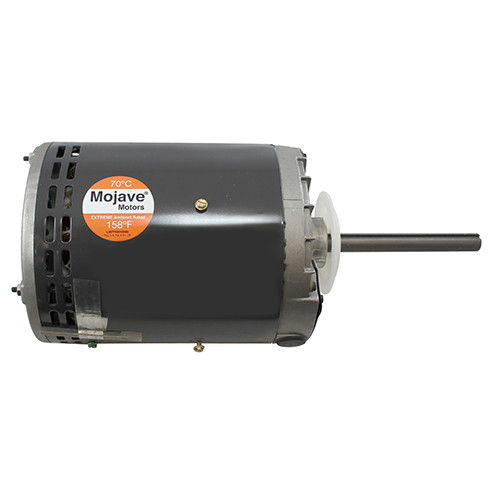

8987H Nidec 2 hp 1140 RPM 208-230/460V 56Z Frame (No Base) 1-Speed OAO 3-Phase Commercial Motor
