1862H Nidec 1/2 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

1862H Nidec 1/2 hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

This 1862H Nidec condenser motor is a 1/2 horsepower, single-speed PSC motor designed for use in HVAC condenser fan applications. It is built to replace standard condenser motors and is suitable for hot environments requiring reliable performance.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 3.2 amps
• Enclosure: TEAO (Open Drip Proof)
• Frame / Diameter: NEMA 5.6" Diameter
• Shaft Dimensions: 1/2" Diameter x 5 1/2" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

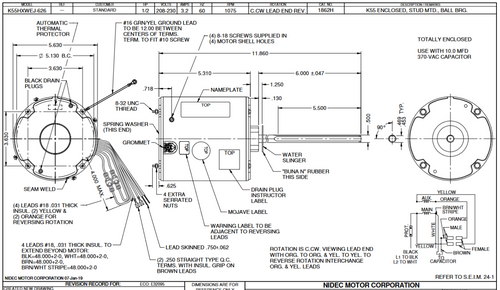

This motor features a rolled steel frame with a flat shaft and includes overload protection with an automatic reset. It is stud mountable and comes with a wiring diagram located on the motor nameplate for easy installation. The motor is designed with Class F insulation for durability in demanding condenser fan environments.

Warranty

1 Year Manufacturer Warranty
