1874H Nidec 1/4 hp 825 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

1874H Nidec 1/4 hp 825 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor

This 1/4 horsepower condenser fan motor is designed for HVAC applications, providing reliable performance in hot environments. It is a direct replacement motor compatible with Rheem mounts and suitable for condenser fan use.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 2.1 amps
• Enclosure: TEAO (Open Drip Proof)
• Frame / Diameter: NEMA 5.6" diameter rolled steel frame
• Shaft Dimensions: 1/2" diameter x 4 1/2" length, flat shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

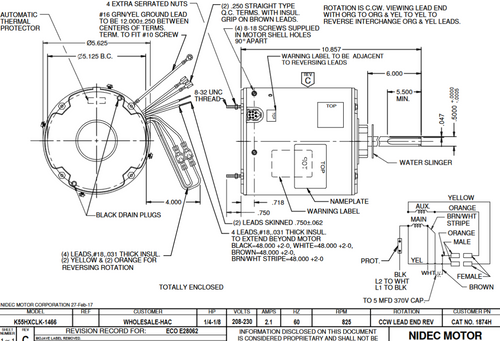

This motor features a stud mount design with a mounting hole compatible with Rheem condenser fan assemblies. It includes a wiring diagram on the motor nameplate for easy installation. The motor is constructed with Class F insulation and incorporates automatic overload protection for durability and safety.

Warranty

1 Year Manufacturer Warranty
