- 1/2 hp 1200 RPM, 2.1-2.0/1.0 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
- Service Factor: 1.15, Overload Protection = None
- Rigid Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty

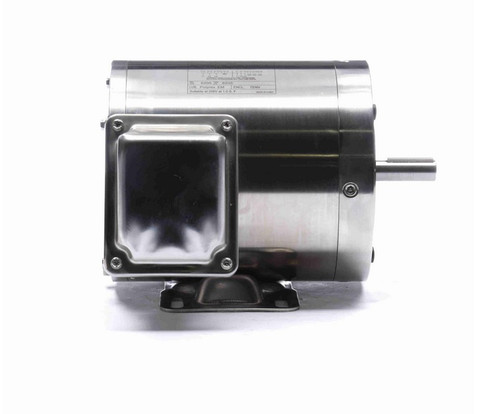

Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 191414.00
