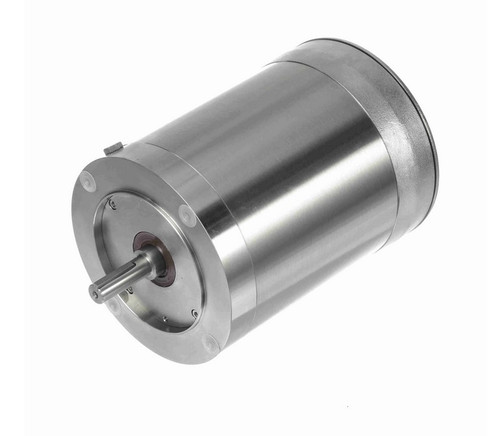

117270.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TENV 3-Phase Premium-Stainless Wash-Down Motor

117270.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TENV 3-Phase Premium-Stainless Wash-Down Motor

This Leeson 3-phase motor is designed for wash-down applications requiring corrosion resistance and durability. It is ideal for replacing or upgrading motors in wet environments where strong disinfectants are used.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 1.7-1.6/0.8 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

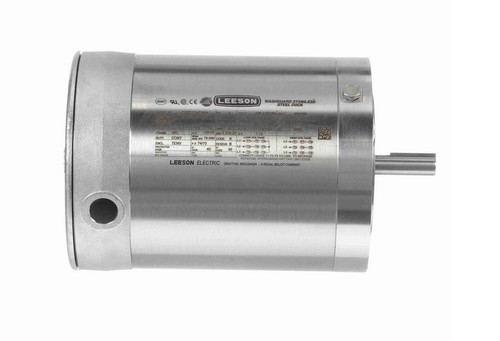

This premium stainless steel motor features a C-face mount with bolt holes spaced 3 3/4" on center across the shaft, facilitating secure installation in wash-down environments. The motor comes without a base and includes a keyed shaft for reliable coupling. Wiring diagrams are provided on the motor nameplate for ease of electrical connection.

Warranty

1 Year Manufacturer Warranty
