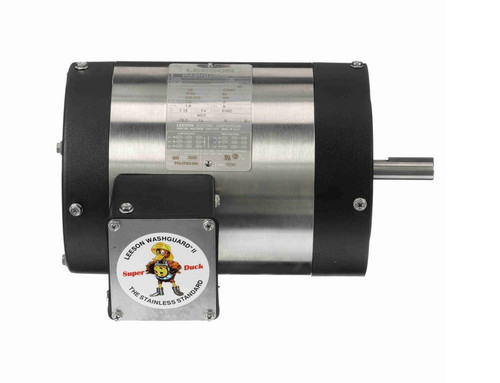

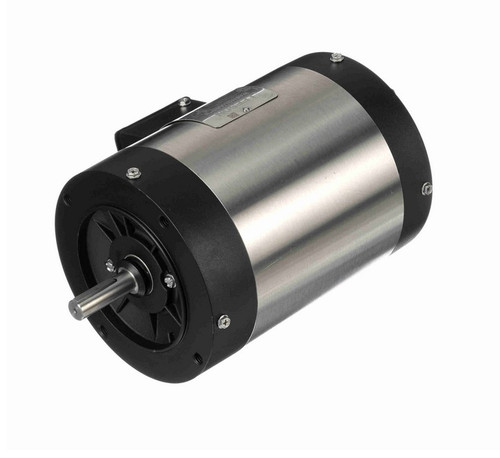

114394.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TENV 3-Phase Stainless-Steel Wash-Down Motor
(No reviews)
Write a Review
Write a Review
Leeson
114394.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (No Base) TENV 3-Phase Stainless-Steel Wash-Down Motor
$716.45
$606.74
SKU
114394
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
1/2 HP
RPM
1800
Phase
Three Phase
Frame
56C
Enclosure
TENV
Hertz
60 Hz
Amperage
1.6/0.8 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
C-Face
- 1/2 hp 1800 RPM, 1.6/0.8 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8
- Service Factor: 1.15, Overload Protection = None
- No Base, Reversible, Ball Bearings - Class F Insulation
- 1 Year Manufacture Warranty
Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 114394.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 1.6/0.8 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | C-Face |
