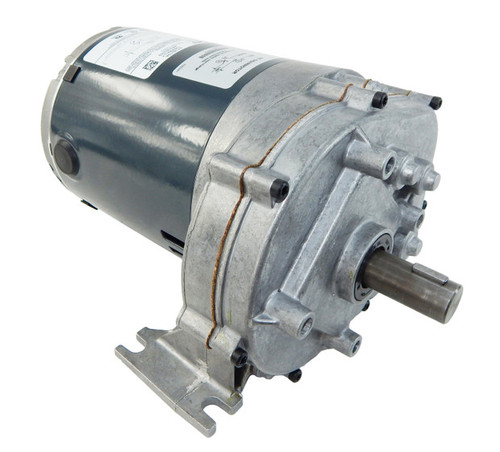

1LPP3 Dayton Direct Interchange 1/4 hp 40 RPM 115V Bison AC Parallel Shaft Gear Motor Model 014Q307-0043

1LPP3 Dayton Direct Interchange 1/4 hp 40 RPM 115V Bison AC Parallel Shaft Gear Motor Model 014Q307-0043

This Bison AC Parallel Shaft Gear Motor is a direct OEM replacement for Dayton models 1LPP3, 1LPP3A, 5K941, and Von Wiese V00323AG20. Designed for industrial applications requiring reliable, low-speed torque, it delivers consistent performance with reversible rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 40
• Voltage: 115V
• Amperage: 4.1 amps
• Rotation: Reversible
• Shaft Dimensions: 3/4" diameter x 1-1/2" length (Woodruff keyed shaft)

Product Features & Fitment

The motor features a load torque capacity of 330 inch-pounds and an overhung load rating of 190 pounds, indicating the maximum weight that can be supported on the shaft without internal damage. It includes four non-threaded bolt holes on the motor face, which can be tapped for 3/8" bolts to facilitate mounting (stainless steel bolts are not recommended). Note that this motor is not designed for speed control.

Cross Reference

• Dayton 1LPP3, 1LPP3A, 5K941
• Von Wiese V00323AG20

Warranty

1 Year Manufacturer Warranty
