1TDR8, 2C917 Dayton Direct OEM Interchange Replacement Blower

1TDR8, 2C917 Dayton Direct OEM Interchange Replacement Blower

This replacement blower is designed as a direct OEM aftermarket substitute for the discontinued Dayton 1TDR8 and 2C917 models. It is ideal for HVAC and industrial motor applications requiring reliable airflow performance.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1530
• Voltage: 230 Volts (60/50 Hz)
• Amperage: 0.54 amps
• Rotation: Non-reversible
• Bearings: Ball bearings

Product Features & Fitment

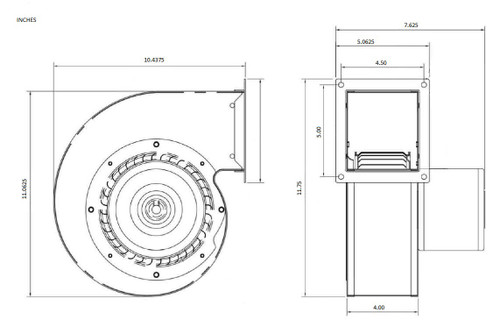

Constructed with a painted steel housing and Class B insulation, this blower features a PSC motor type with automatic overload protection and cULus approval. It supports all-position mounting with an outlet flange bolt hole dimension of 4-1/2" x 5" and is rated for a maximum inlet temperature of 104°F. The blower does not include a power cord or on/off switch and is not recommended for speed control applications.

This unit is a direct replacement for the discontinued Dayton 2C917 and is also compatible with Fasco 7008-6163. Installation should be performed by a certified technician, ensuring power is disconnected before replacement. The product is engineered to meet OEM standards for easy and precise fitment.

Cross Reference

• Dayton Model 2C917 is discontinued - the PTDR8 blower is the direct replacement
• Fasco 7008-6163

Warranty

1 Year Manufacturer Warranty
