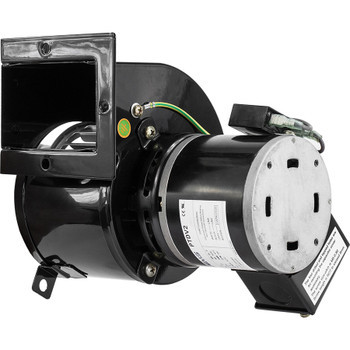

1TDV2 Dayton Direct Replacement Blower

1TDV2 Dayton Direct Replacement Blower

The PTDV2 is a direct OEM aftermarket replacement blower designed to replace the discontinued Dayton 1TDV2 and model 4C941. It is ideal for applications requiring reliable airflow with a maximum capacity of 129 CFM.

Key Specifications

• RPM: 3200
• Voltage: 115 Volts, 60/50 Hz
• Amperage: 0.65 Amps
• Bearings: Ball Bearings

Product Features & Fitment

This blower features a painted steel housing with Class B insulation and a PSC motor type. It includes a conduit box but does not come with a power cord or on/off switch. The blower is non-reversible and not recommended for speed control. It supports all-position mounting and automatic overload protection.

For optimal performance, the motor must be installed in an environment where ambient temperature does not exceed 104°F, while the blower inlet can handle air temperatures up to 450°F. The PTDV2 is a suggested replacement for Dayton model 4C941 and Fasco models 7021-6560 and 70216560.

Cross Reference

• Dayton Model 4C941 is discontinued - the PTDV2 blower is the direct replacement
• Fasco 7021-6560, 70216560

Warranty

1 Year Manufacturer Warranty
