116761.00 Leeson | 2 hp 1725 RPM 56H Frame 230/460 Volts TEFC

116761.00 Leeson | 2 hp 1725 RPM 56H Frame 230/460 Volts TEFC

This Leeson 2 hp, 1725 RPM three-phase electric motor is designed for general-purpose industrial applications. It replaces models 113026.00 and Marathon G369A (56T17F15669), offering reliable performance with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 2 hp
• RPM: 1725
• Voltage: 230/460 Volts
• Amperage: 5.8/2.9 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

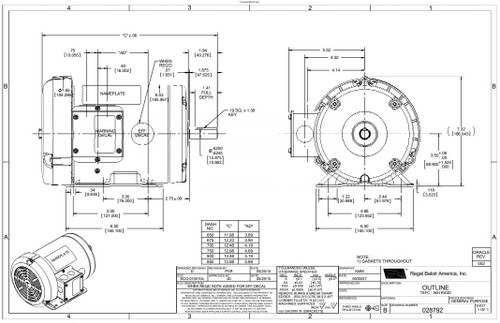

• Frame / Diameter: NEMA 56H Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1-7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It is equipped with Class F insulation and a service factor of 1.25, though it does not include overload protection. Wiring diagrams are provided on the motor nameplate for ease of setup.

Cross Reference

• 113026.00
• Replaces Marathon G369A, 056T17F15669

Warranty

1 Year Manufacturer Warranty
