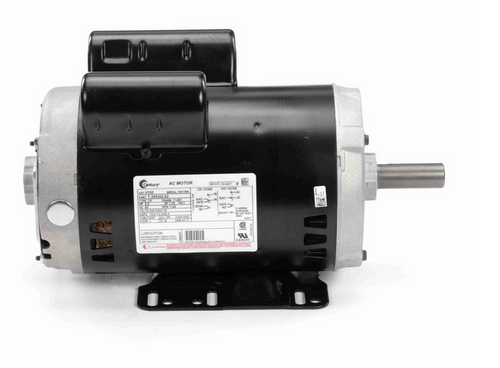

V102 Century 2 hp 1800 RPM 1-Phase 145T Frame ODP (rigid base) 115/208-230V Century Motor # V102

V102 Century 2 hp 1800 RPM 1-Phase 145T Frame ODP (rigid base) 115/208-230V Century Motor # V102

This Century V102 motor is a general-purpose, single-phase motor designed for applications requiring a 2 horsepower, 1800 RPM motor with a rigid base mount. It is suitable for replacing motors in HVAC systems and other industrial equipment that do not have special requirements.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 20.4/10.0-10.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for secure mounting and includes a keyed shaft for reliable coupling. It operates with a capacitor start/run configuration and has Class B insulation for durability. The wiring diagram is located on the motor nameplate for easy installation reference.

Warranty

1 Year Manufacturer Warranty
