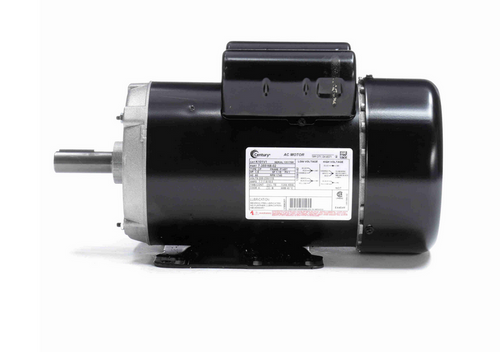

K101V1 Century 1-1/2 hp 1800 RPM 1-Phase 145T Frame TEFC (rigid base) 115/208-230V

K101V1 Century 1-1/2 hp 1800 RPM 1-Phase 145T Frame TEFC (rigid base) 115/208-230V

This Century K101V1 motor is a general-purpose, single-phase replacement motor designed for various industrial and HVAC applications. It features a totally enclosed fan-cooled (TEFC) design with a rigid base mount, suitable for equipment requiring reliable 1-1/2 horsepower performance at 1800 RPM.

Key Specifications

• Horsepower: 1-1/2 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 15.0/7.7-7.5 amps
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)
• Frame / Diameter: NEMA 145T frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor includes a capacitor start with induction run design and a service factor of 1.15. It mounts on a rigid base and features a keyed shaft for secure coupling. Wiring diagrams are provided on the motor nameplate to assist with installation. The motor is designed for general-purpose use where no special requirements are needed.

Warranty

1 Year Manufacturer Warranty
