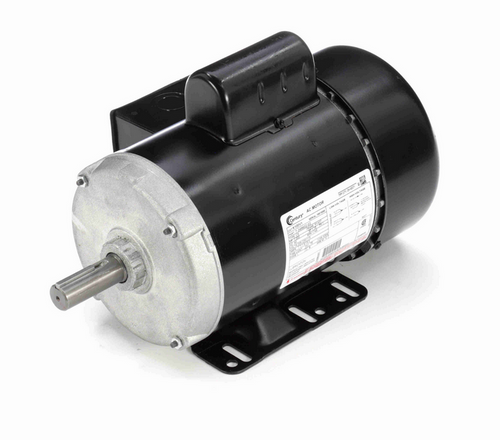

K100V1 Century 1 hp 1800 RPM 1-Phase 143T Frame TEFC (rigid base) 115/208-230V

SKU:
K100V1
Weight:
40.00 LBS
Shipping:
Free Shipping
ON SALE:
LIMITED TIME DISCOUNT AND FREE SHIPPING
Was: $452.50
Now: $430.40
  • 1 hp 1800 RPM, 15.0/7.7-7.5 amps 115/208-230 Volts 60hz. Capacitor Start / Induction Run
  • NEMA 143T frame, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motors are for use in situations not having special requirements. This is a single phase motor with a rigid base mount. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. K100V1
