121866.00 Leeson | 2 hp 1800 RPM 145T Frame 230/460V Wash Down Duty
Write a Review
Leeson
121866.00 Leeson | 2 hp 1800 RPM 145T Frame 230/460V Wash Down Duty
121866.00 Leeson | 2 hp 1800 RPM 145T Frame 230/460V Wash Down Duty

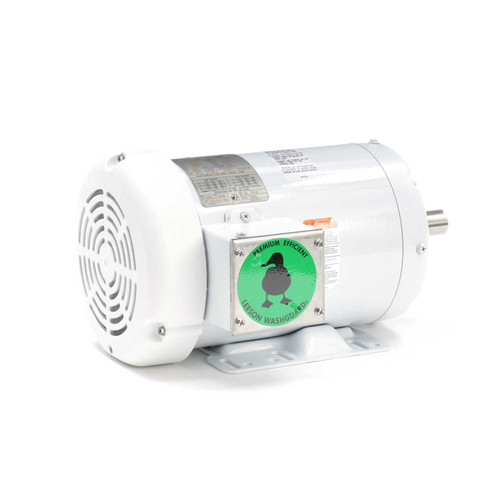

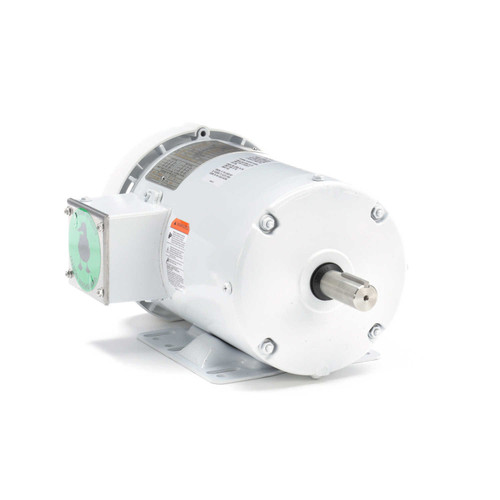

This Leeson 2 hp, 1800 RPM three-phase motor is designed for wash down duty applications, offering durability and moisture resistance. It replaces models G120586.00 and Marathon N312A / 145TTWR6027, making it suitable for industrial environments requiring reliable, premium efficient motors.
Key Specifications
- Horsepower: 2 hp
- RPM: 1800
- Voltage: 230/460V
- Amperage: 5.8/2.9 amps
- Frame / Diameter: NEMA 145T Frame
- Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
Product Features & Fitment
This Leeson Washguard motor features a rigid base and is coated with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture protection. The motor incorporates the IRIS insulation system and moisture-resistant interior components, making it ideal for wash down and harsh environments.
Cross Reference
- G120586.00
- Replaces Marathon N312A, 145TTWR6027
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145T |
| Hertz | 60 Hz |
| Amperage | 5.8/2.9 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- G120586.00
- Replaces Marathon N312A, 145TTWR6027
