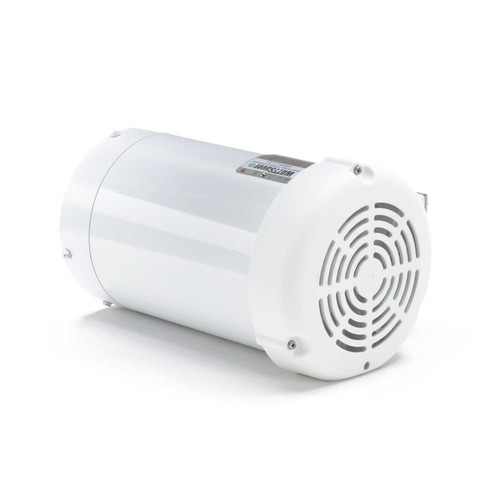

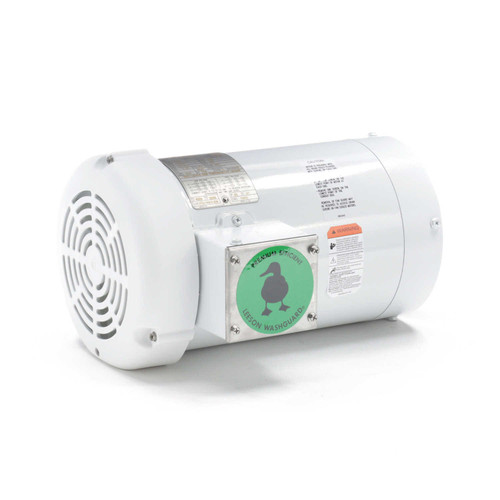

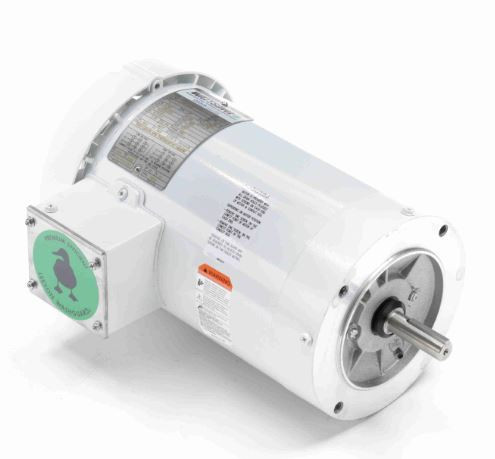

122182.00 Leeson | 2 hp 1800 RPM 145TC TEFC (no base) 208-230/460V Wash Down Duty
(No reviews)
Write a Review
Write a Review
Leeson
122182.00 Leeson | 2 hp 1800 RPM 145TC TEFC (no base) 208-230/460V Wash Down Duty
$1,000.00
$930.00
SKU
122182.00
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
208/230/460V
Horsepower
2 HP
RPM
1800
Phase
Three Phase
Frame
145TC
Enclosure
TEFC
Hertz
60 Hz
Amperage
5.8/2.9 Amps
Service Factor
1.15
Insulation Class
Class F
- 2 hp 1800 RPM, 5.8/2.9 amps 208-230/460 Volts 60hz. Three Phase Motor

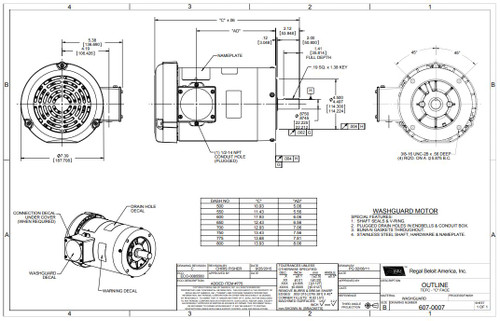

- NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
- Leeson Washguard Motor - Round Body No Base
- Service Factor: 1.15 - overload protection = None - Class F Insulation
- 1 Year Manufacture Warranty
Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.
122182.00
Replaces G120762.00
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 208/230/460V |
| Horsepower | 2 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 145TC |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 5.8/2.9 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
Related Products
sale
Add to Cart
The item has been added
121868.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC 230/460V Wash Down Duty
2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
Leeson Washguard Motor - Rigid Base - Premium Efficient
Service Factor: 1.15 -...
$1,250.00
$1,026.00
sale
Add to Cart
The item has been added
122185.00 Leeson | 2 hp 3600 RPM 145TC Frame TEFC 208-230/460V Wash Down Duty
122185.00 Leeson 2 hp 3600 RPM 145TC Frame TEFC Wash Down Duty Motor
This Leeson 2 hp, 3600 RPM three-phase motor is designed for wash down duty applications, offering reliable performance and...
$1,100.55
$932.42
sale
Add to Cart
The item has been added

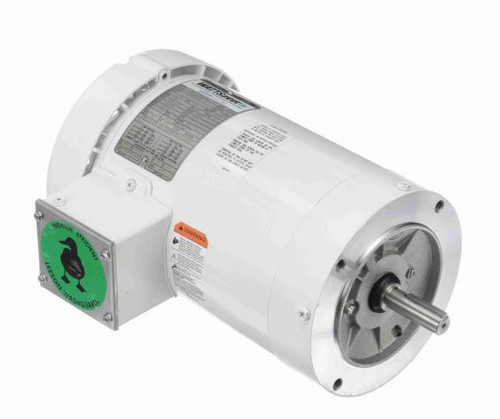

122180.00 Leeson | 1.5 hp 1800 RPM 145TC Frame TEFC (no base) C-Face 208/230-460V Wash Down Duty
