D2C2P18 Nidec | 2 hp 1800 RPM 182T Frame 115/230V Open Drip Nidec Electric Motor
D2C2P18 Nidec | 2 hp 1800 RPM 182T Frame 115/230V Open Drip Nidec Electric Motor
D2C2P18 Nidec | 2 hp 1800 RPM 182T Frame 115/230V Open Drip Nidec Electric Motor
D2C2P18 Nidec | 2 hp 1800 RPM 182T Frame 115/230V Open Drip Nidec Electric Motor

Nidec

D2C2P18 Nidec | 2 hp 1800 RPM 182T Frame 115/230V Open Drip Nidec Electric Motor

(No reviews) Write a Review
$542.80
$484.73
SKU D2C2P18
UPC 6.63E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Phase Single Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 23.2/11.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 2 hp 1800 RPM, 23.2/11.6 amps 115/230 Volts 60hz.
  • Capacitor Start Motor
  • NEMA 182T Frame Keyed Shaft 1 1/4" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

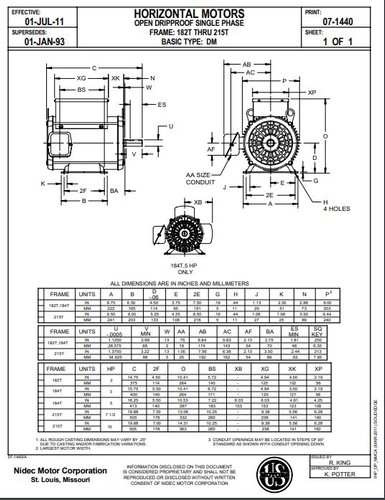

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. ODP = Open Drip Proof,

Model F076; Marathon Equivalent I112A; Dayton 5K953, 6YT10

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Phase Single Phase
Frame 182T
Enclosure ODP
Hertz 60 Hz
Amperage 23.2/11.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
