FDU2CM2P18Z Nidec | 2 hp 1800 RPM 182TZ Frame 115/230V (Farm Duty) Ulta High Torque Nidec Electric Motor
FDU2CM2P18Z Nidec | 2 hp 1800 RPM 182TZ Frame 115/230V (Farm Duty) Ulta High Torque Nidec Electric Motor
FDU2CM2P18Z Nidec | 2 hp 1800 RPM 182TZ Frame 115/230V (Farm Duty) Ulta High Torque Nidec Electric Motor
FDU2CM2P18Z Nidec | 2 hp 1800 RPM 182TZ Frame 115/230V (Farm Duty) Ulta High Torque Nidec Electric Motor

Nidec

FDU2CM2P18Z Nidec | 2 hp 1800 RPM 182TZ Frame 115/230V (Farm Duty) Ulta High Torque Nidec Electric Motor

(No reviews) Write a Review
$690.00
$655.44
SKU FDU2CM2P18Z
UPC 6.63E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Frame 182TZ
Enclosure TEFC
Hertz 60 Hz
Amperage 25.6/12.8 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
Adding to cart… The item has been added
Description
  • 2 hp 1800 RPM, 25.6/12.8 amps, 115/230 Volts 60hz.

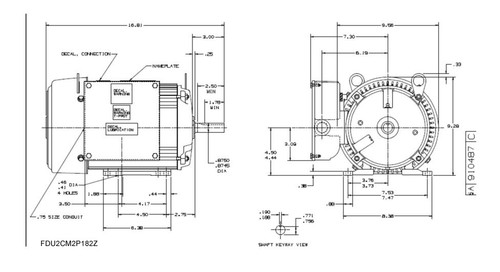

  • NEMA 182TZ Frame - Flat Rigid base mount - 7/8" Diameter shaft x 2 3/4"
  • TEFC Totally Enclosed Fan cooled - Service Factor = 1.15
  • Reversible; Class F Insulation
  • Manual Overload Protection
  • One Year Manufacture Warranty

40C Ambient Temp, continuous duty, Typical Starting Torque 300% of Full Load, Plastic Fan & Cover, Double shielded bearings with low-temp grease (Regreasable shaft end), Removable condensation drains for vertical mounting, Fully gasketed steel conduit box. Capacitor Start/Run Motor.

Agricultural motor

Model: J499; Dayton 6K887



Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 115/230V
Horsepower 2 HP
RPM 1800
Frame 182TZ
Enclosure TEFC
Hertz 60 Hz
Amperage 25.6/12.8 Amps
Insulation Class Class F
Mounting Rigid Base
Duty continuous duty
!
